S4 Pipeline (Van Dyk Park to Rynfield)
CLIENT: Rand Water
LOCATION: Gauteng, South Africa
TYPE OF CONTRACT: Professional Engineering
Services Provided:
Project Scope:
Consulting Engineering full Service up to Stage 4: Documentation and Procurement, with Design imput during Construction on the S4 Pipeline: 16.5km x 1800mm diameter rising main between Van Dyk Park to Rynfiled with a average flow of 410 Mℓ/day and peak design flow of 450 Mℓ/day.

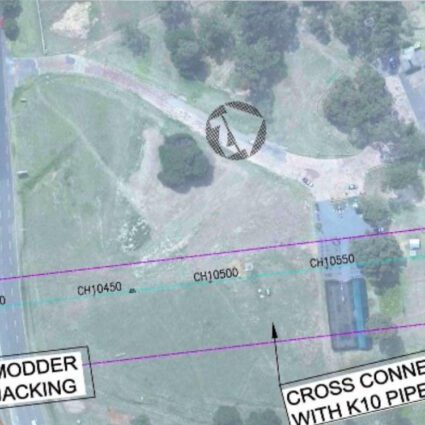

The pipeline required pipe jacking at 20 road (including N12 and N17) and railway crossings (2250mm diameter concrete sleeves) and cross connections to existing Rand Water pipelines. Specialist Geotechnical Services provided by Michael Pavlakis & Associates.
Features:
Project Value: R380 million
LOCATION: Gauteng, South Africa
TYPE OF CONTRACT: Professional Engineering
Services Provided:
- Planning and Preliminary Design.
- Design Development.
- Documentation.
- Cost Estimating.
- Design amendments during Construction
Project Scope:
Consulting Engineering full Service up to Stage 4: Documentation and Procurement, with Design imput during Construction on the S4 Pipeline: 16.5km x 1800mm diameter rising main between Van Dyk Park to Rynfiled with a average flow of 410 Mℓ/day and peak design flow of 450 Mℓ/day.
The pipeline required pipe jacking at 20 road (including N12 and N17) and railway crossings (2250mm diameter concrete sleeves) and cross connections to existing Rand Water pipelines. Specialist Geotechnical Services provided by Michael Pavlakis & Associates.
Features:
- Steel Pipeline: 16.5km length 1800mm diameter (wall thickness 16mm).

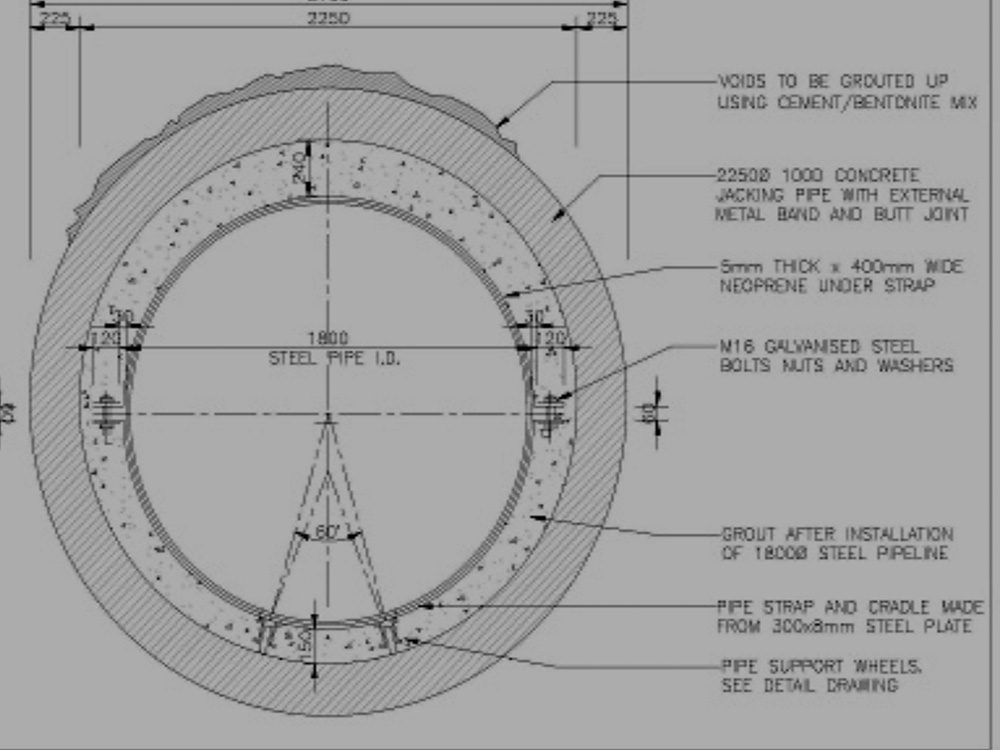

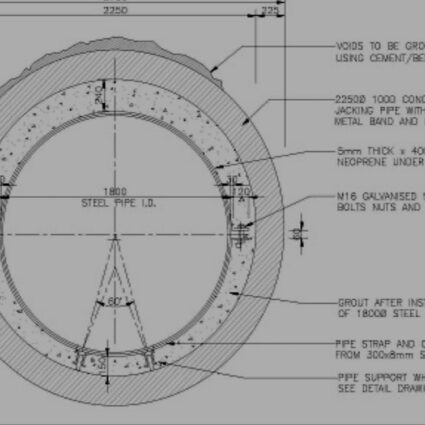

- Pipe Jacking: 20 No. 2250 mm diameter sleeves.
- Peak Design Flows: 450 Mℓ/day Van Dyk Park to Rynfiled.
Project Value: R380 million
Category: Water
