CLIENT: eThekwini Municipality: Water and Sanitation Department

LOCATION: KwaZulu-Natal

TYPE OF CONTRACT: Professional Engineering & Project Management Services (EPCM)

SCOPE OF SERVICES PROVIDED:

• Engineering Design and Review
• Cost Estimating
• Procurement
• Contract Administration
• Construction Monitoring (Supervision)
• Commissioning and Handover

PROJECT SCOPE:

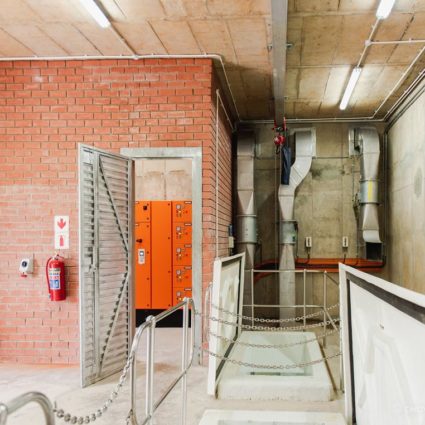

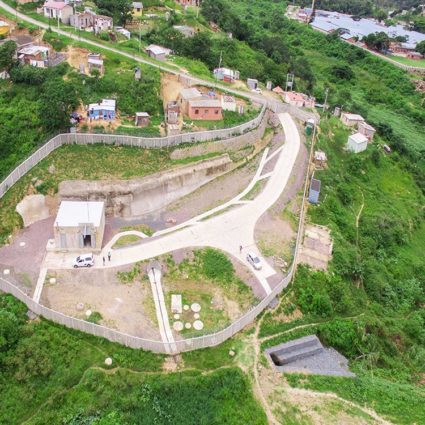

The design and construction of the Malukazi Bulk Sewer project including Malukazi Pumpstation, was completed in February 2019 within the allocated R32 million budget. The project entailed civil design including the Pumpstation design review, a temporary Pumpstation, bulk and reticulation sewer infrastructure, roads and stormwater rehabilitation and the environmental management of water course. The electrical and mechanical components included pump and pipework design, ventilation design, lighting and electrical supply, lightning protection and telemetry.

This project formed part of the 3 year contract for the “Provision of Water and Sanitation to Informal Settlements and Schools - Phase 3 Project for eThekwini Water and Sanitation”.

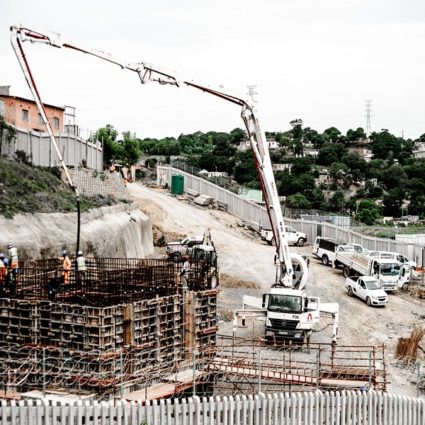

The construction of the pumpstation was governed by the concrete superstructure which was previously partially completed in Phase 2 of the Sanitation Project considering the complexities due to the excessive ground water ingress. In addition, interim communal ablution facilities sewer flows had to be dealt with through the introduction of a temporary pumpstation, then converted into the overflow chamber at completion of the pumpstation. Despite the numerous challenges affecting the continuity of work and contractual issues with Contractors, the project was successfully completed within budget and to the highest level of quality.

There was an involved co-ordination management component for coordinating the sub-specialists on the project, together with the contractors (e.g. mechanical, ventilation, fire, geotechnical, electrical, roads, and earthing contractors).

Key Project Information:

Pumping Capacity: 34 l/s Pumping Dynamic Head: 70m Operating System: 2 pumps (duty and standby) with VSD Drives Dimensions of Pumpstation: 13m deep, 11m by 10m in plan Sump Dimensions: 2,5m deep, 8m by 4m in plan
